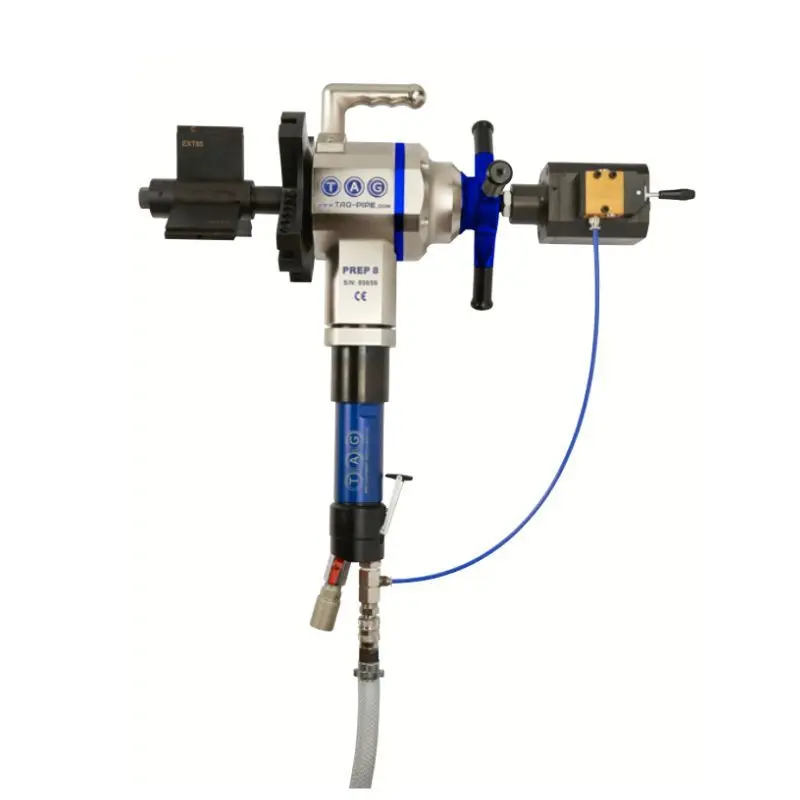

TP8PALD Prep 8 Pneumatic 50 - 207Mm I/D Auto Lock

TAG TP8PALD Prep 8 Pneumatic with Auto Lock is a high-tech, portable inside diameter locking cold pipe beveling machine designed for precise facing, external and internal beveling, counterboring, J-prepping, and weld removal in welding, fabrication, and industrial piping applications. Powered by a 1.85 HP pneumatic motor for reliable performance in demanding environments, this lightweight one-man operation tool features an offset 4-jaw chuck for up to 4 tools simultaneously and an integrated automatic locking device (ALD) for effortless, secure clamping via pneumatic lever actuation, enabling efficient processing of pipes from 2" to 8" (50 mm to 211 mm I/D) up to Schedule 80 wall thickness. Ideal for on-site or workshop use with steel and exotic alloys, it delivers distortion-free results while maintaining full accessibility for subsequent welding.

• Model Number: TP8PALD
• Product Type: Pneumatic Pipe Beveling Machine with Auto Lock (Prep 8 Series)
• Color: Silver/Gray
• Material: High-strength steel with hardened components
• Clamping Range: 2" - 8" / 50 mm - 211 mm I/D
• Motor Type: Pneumatic (1.85 HP, up to 90 psi / 6.5 bar working pressure, 50 cfm / 1400 l/min consumption, 3/4" air hose connection)
• Idle Speed: 5 - 52 rpm
• Torque: 265 Nm
• Axial Feed Length: 40 mm
• Weight (Net): 25 kg / 55 lbs
• Dimensions (A x B x ØC x ØD x E): 670 mm x 520 mm x 278 mm Ø x 220 mm Ø x 86 mm (26.4 in x 20.5 in x 10.9 in Ø x 8.7 in Ø x 3.4 in)
• Max Operating Temperature: 55 °C / 131 °F
• Max Acoustic Radiation: 75 dB
• Overview: Portable, one-man operation beveler for medium diameter pipe preparation; supports 30° to 60° bevel angles with formed or single-point tools; ideal for fabrication shops, construction sites, and pipeline maintenance
• Key Features:
  • i/d locking and in-line feed: Ensures secure, vibration-free clamping for precise, repeatable results on thin- or heavy-wall pipes
  • Offset 4-jaw tool holder (chuck): Allows simultaneous use of up to 4 insert or formed tools for facing, beveling, counter-boring, weld removal, J-prepping, and compound bevels
  • Auto Lock device: Pneumatic actuation via lever for effortless locking/unlocking of jaws; installs with 0.5-1 mm gap between shafts using grub screws
  • Quick setup: Self-centering jaws and rapid tool change for efficient on-site operation; modular design for motor/accessory interchange
  • Durability: Hardened components resist wear in demanding environments; suitable for any steel and exotic alloys; must use with filter lubricator and oil (use without voids warranty)
  • Safety: Overload protection and ergonomic design reduce operator fatigue and hazards; requires PPE and qualified operator training
• Packaging: 1 Machine per Unit; Includes all gripping segments to cover the full range, service tools, drawings, instruction manual, warranty certificate; Packed in protective custom-built metal box; Packing Dimensions (L x W x H): 830 mm x 780 mm x 250 mm (32.7 in x 30.7 in x 9.8 in); Packing Weight: 55 kg / 121 lbs
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe preparation tools (e.g., ASME B16.25 equivalents)
