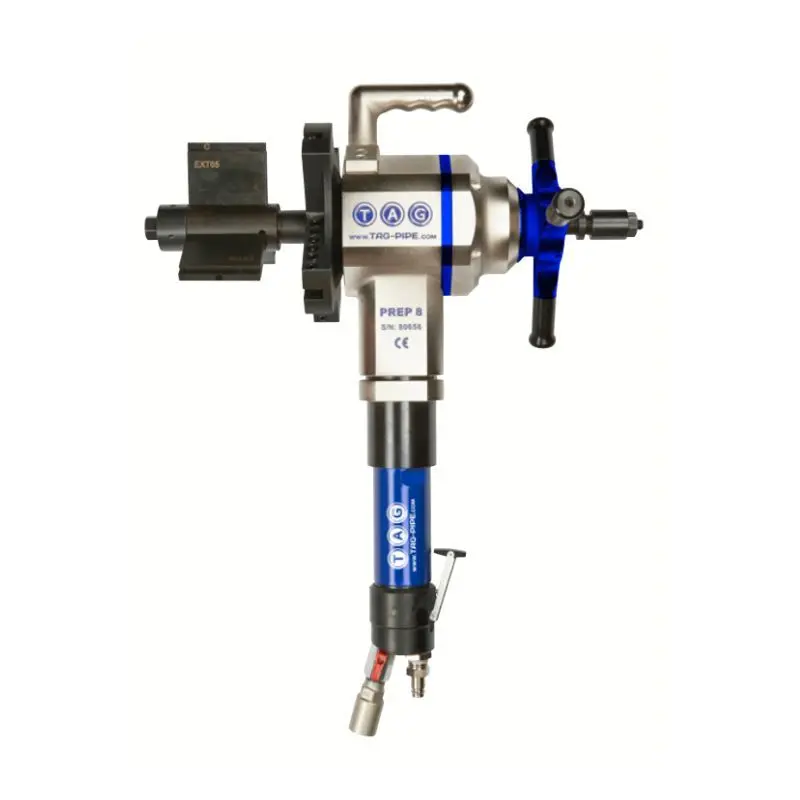

TP8P Prep 8 Pneumatic

TAG TP8P Prep 8 Pneumatic is a portable, one-man operation pipe beveling machine with an impressive 2-8" (50-211 mm i/d) working range and high power, making it suitable for heavy-duty applications on site or in the workshop. It supports functions such as external beveling, internal beveling, elbow and fittings beveling, facing, counter-boring, weld removal, J-prepping, and compound bevels. It works on any kind of steel and exotic alloys. The pneumatic model features an i/d locking, in-line feed design with a power-to-weight ratio and offset 4-jaw tool holder (chuck) that allows use of up to 4 insert or formed tools for simultaneous external and internal beveling of heavy wall pipe. It is a real workhorse for high-volume applications.

• Model Number: TP8P
• Product Type: Pneumatic Pipe Beveling Machine (Prep 8 Series)
• Color: Silver/Gray
• Material: High-strength steel with hardened components
• Clamping Range: 2" - 8" / 50 mm - 211 mm I/D
• Motor Type: Pneumatic (1.85 HP, up to 90 psi / 6.5 bar working pressure, 50 cfm / 1400 l/min consumption, 3/4" air hose connection)
• Idle Speed: 5 - 52 rpm
• Torque: 265 Nm
• Axial Feed Length: 40 mm
• Weight (Net): 25 kg / 55 lbs
• Dimensions (A x B x ØC x ØD x E): 670 mm x 520 mm x 278 mm Ø x 220 mm Ø x 86 mm (26.4 in x 20.5 in x 10.9 in Ø x 8.7 in Ø x 3.4 in)
• Max Operating Temperature: 55 °C / 131 °F
• Max Acoustic Radiation: 75 dB
• Overview: Portable, one-man operation beveler for medium diameter pipe preparation; supports 30° to 60° bevel angles with formed or single-point tools; ideal for fabrication shops, construction sites, and pipeline maintenance
• Key Features:
  • i/d locking and in-line feed: Ensures secure, vibration-free clamping for precise, repeatable results on thin- or heavy-wall pipes
  • Offset 4-jaw tool holder (chuck): Allows simultaneous use of up to 4 insert or formed tools for facing, beveling, counter-boring, weld removal, J-prepping, and compound bevels
  • Quick setup: Self-centering jaws and rapid tool change for efficient on-site operation
  • Durability: Hardened components resist wear in demanding environments; suitable for any steel and exotic alloys
  • Versatility: Handles external/internal beveling, elbow/fittings beveling; must use with filter lubricator and oil (use without voids warranty)
  • Safety: Overload protection and ergonomic design reduce operator fatigue and hazards
• Packaging: 1 Machine per Unit; Includes all gripping segments to cover the full range, service tools, drawings, instruction manual, warranty certificate; Packed in protective custom-built metal box; Packing Dimensions (L x W x H): 830 mm x 780 mm x 250 mm (32.7 in x 30.7 in x 9.8 in); Packing Weight: 55 kg / 121 lbs
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe preparation tools (e.g., ASME B16.25 equivalents)
