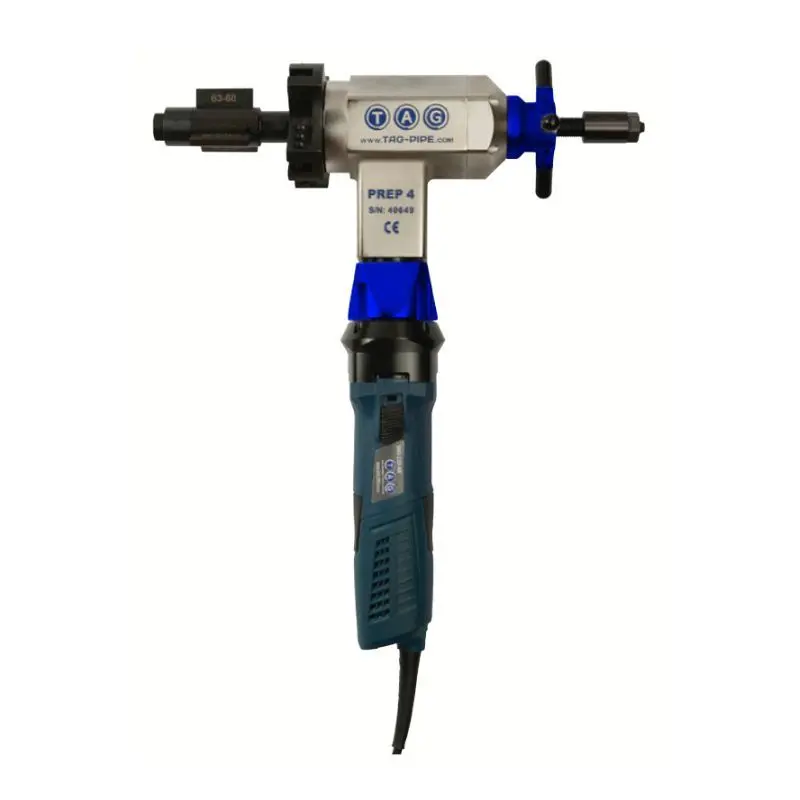

TP4E220 Prep 4 Electric 220V

TAG TP4E220 Prep 4 Electric (220V) is a high-tech, portable inside diameter locking cold pipe beveling machine designed for precise facing, external and internal beveling, counterboring, and J-prepping in welding, fabrication, and industrial piping applications. Powered by a 1300W electric motor at 220V for reliable performance and unrivaled power-to-weight ratio, this lightweight tool features a 4-jaw chuck for up to 4 tools simultaneously, enabling efficient processing of pipes from 1" to 4" (23 mm to 112 mm I/D) up to Schedule 80 wall thickness. Ideal for on-site or workshop use with steel and exotic alloys, it delivers distortion-free results while maintaining full accessibility for subsequent welding.

• Model Number: TP4E220
• Product Type: Electric Pipe Beveling Machine (Prep 4 Series)
• Color: Silver/Gray
• Material: CNC machined solid aluminum body with nickel plating and hardened components
• Clamping Range: 1" - 4" / 23 mm - 112 mm I/D
• Motor Type: Electric (1300 W, 220 V single-phase, 50/60 Hz)
• Idle Speed: 5 - 82 rpm
• Torque: 152 Nm
• Axial Feed Length: 40.5 mm
• Weight (Net): 10.4 kg / 23 lbs
• Dimensions (A x B x ØC): 510 mm x 434 mm x 140 mm (20.1 in x 17.1 in x 5.5 in)
• Max Operating Temperature: 55 °C / 131 °F
• Max Acoustic Radiation: 75 dB
• Overview: Compact, lightweight beveler for small-to-medium diameter pipe preparation; supports 30° to 60° bevel angles with formed or single-point tools; ideal for high-volume boiler repair, tube facing, weld removal, and J-prepping of tube plates in fabrication shops, construction sites, and maintenance operations
• Key Features:
  • Modular design: Interchangeable with pneumatic or battery motors; accepts accessories like reduced shaft kit, elbow shaft kit, and automatic locking device
  • 4-jaw chuck: Allows simultaneous use of up to 4 tools for facing, beveling, counterboring, J-prepping, and weld removal
  • Self-centering I/D locking: Ensures secure, vibration-free clamping for precise, repeatable results on thin- or heavy-wall pipes; thru shaft system locks to pipe bore
  • Quick setup: Ratchet handles and feed stopper for efficient operation; ergonomic for on-site portability; torque reactive design allows beveling without fixing the pipe
  • Durability: Hardened components and HSS Co tooling resist wear; suitable for any steel and exotic alloys
  • Safety: Overload protection; requires PPE and qualified operator training
• Packaging: 1 Machine per Unit; Includes all gripping segments to cover the full range, service tools, drawings, instruction manual, warranty certificate; Packed in protective custom-built metal box; Packing Dimensions (L x W x H): 640 mm x 500 mm x 140 mm (25.2 in x 19.7 in x 5.5 in); Packing Weight: 29.5 kg / 65 lbs
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe preparation tools (e.g., ASME B16.25 equivalents)
