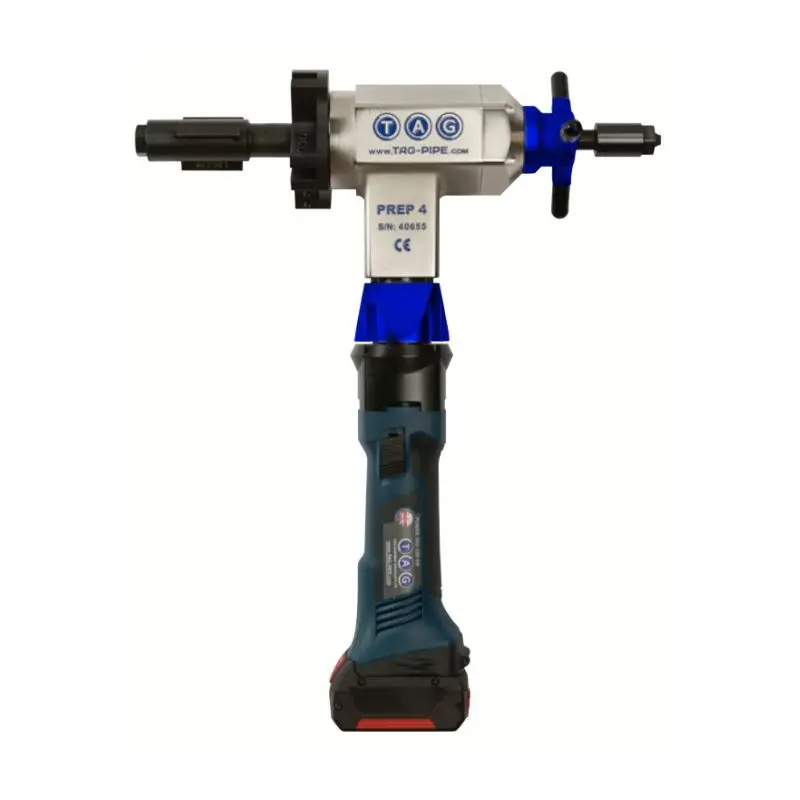

TP4B220 Prep 4 Battery - Charger 220V (Includes 2 X Batteries And 1 X Fast Charger)

TAG TP4B220 Prep 4 Battery is a high-tech, portable inside diameter locking cold pipe beveling machine designed for precise facing, external and internal beveling, counterboring, J-prepping, and weld removal in welding, fabrication, and industrial piping applications. Powered by an 18V battery electric motor with included 2 x batteries and a 220V fast charger for cordless operation, this lightweight tool features a 4-jaw chuck for up to 4 tools simultaneously, enabling efficient processing of pipes from 1" to 4" (23 mm to 112 mm I/D) up to Schedule 80 wall thickness. Ideal for on-site or workshop use with steel and exotic alloys, it delivers distortion-free results while maintaining full accessibility for subsequent welding.

• Model Number: TP4B220
• Product Type: Battery Powered Pipe Beveling Machine (Prep 4 Series)
• Color: Silver/Gray
• Material: CNC machined solid aluminum body with nickel plating and hardened components
• Clamping Range: 1" - 4" / 23 mm - 112 mm I/D
• Motor Type: Battery Electric (18V)
• Batteries: 2 x Batteries (included)
• Charger: Fast Charger 220V, 50/60 Hz (included)
• Idle Speed: Variable (up to 120 rpm)
• Torque: Up to 140 Nm
• Axial Feed Length: 40 mm
• Weight (Net): Lightweight for its class (approximately 12 kg / 26 lbs)
• Dimensions (L x H x Ø): Approximately 530 mm x 402 mm x 140 mm (20.9 in x 15.8 in x 5.5 in)
• Overview: Compact, lightweight beveler for small-to-medium diameter pipe preparation; supports 30° to 60° bevel angles with formed or single-point tools; ideal for fabrication shops, construction sites, and maintenance operations
• Key Features:
  • Modular design: Interchangeable with pneumatic or electric motors; accepts accessories like reduced shaft kit, elbow shaft kit, and automatic locking device
  • 4-jaw chuck: Allows simultaneous use of up to 4 tools for facing, beveling, counterboring, J-prepping, and weld removal
  • Self-centering I/D locking: Ensures secure, vibration-free clamping for precise, repeatable results on thin- or heavy-wall pipes; thru shaft system locks to pipe bore
  • Quick setup: Ratchet handles and feed stopper for efficient operation; ergonomic for on-site portability; torque reactive design allows beveling without fixing the pipe
  • Durability: Hardened components and HSS Co tooling resist wear; max operating temperature 55°C
  • Safety: Overload protection; requires PPE and qualified operator training
• Packaging: 1 Machine per Unit; Includes 2 x Batteries, 1 x Fast Charger 220V, all gripping segments, service tools, drawings, instruction manual, warranty certificate; Packed in protective custom-built metal box; Packing Dimensions (L x W x H): 640 x 640 x 140 mm (25.2 x 25.2 x 5.5 in); Packing Weight: Approximately 25 kg / 55 lbs
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe preparation tools (e.g., ASME B16.25 equivalents)
