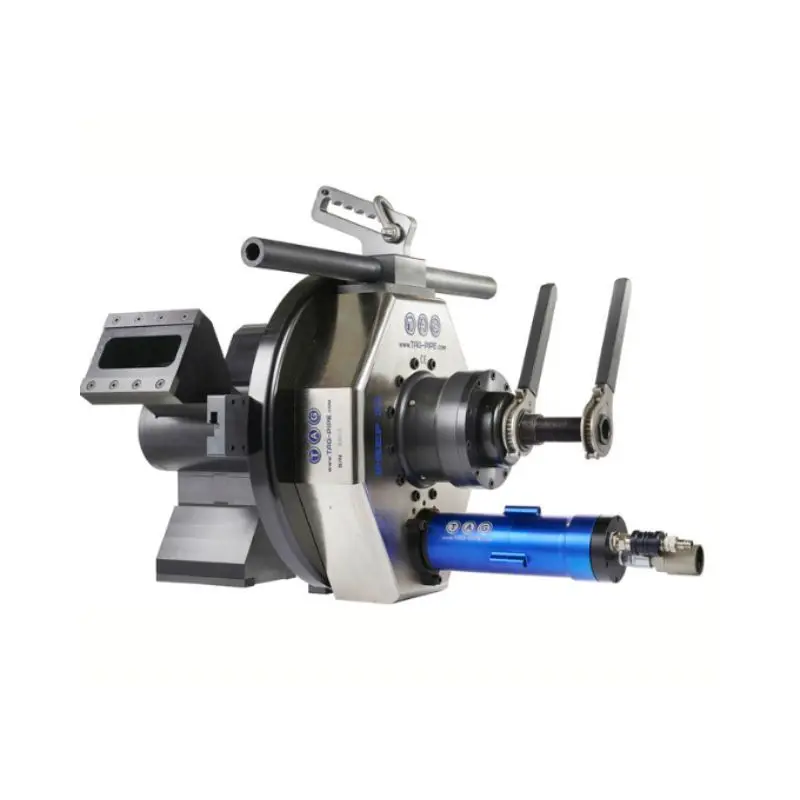

TP24P Prep 24 Pneumatic

TAG TP24P Prep 24 Pneumatic is a heavy-duty, portable pipe beveling machine designed for precise beveling, cutting, and facing in welding, fabrication, and industrial piping applications. Powered by a 3.5 HP pneumatic motor for reliable performance in demanding environments, this large-diameter tool features TAG's innovative bearing/crown and pinion design with a large shaft and ratcheted I/D jaw locking, enabling efficient processing of pipes from 7" to 24" (180 mm to 604 mm O/D) up to Schedule 80 wall thickness. Ideal for on-site or shop use with heavy-wall materials, it delivers distortion-free results while maintaining full accessibility for subsequent welding.

• Model Number: TP24P
• Product Type: Pneumatic Pipe Beveling Machine (Prep 24 Series)
• Color: Silver/Gray
• Material: High-strength steel with hardened components
• Clamping Range: 7" - 24" / 180 mm - 604 mm O/D (locking tube i/d 175 - 600 mm / 6.9 - 23.6")
• Motor Type: Pneumatic (3.5 HP, 90 psi / 6.5 bar working pressure, 90 cfm / 2500 l/min consumption, 3/4" air hose connection)
• Idle Speed: 2 - 9 rpm
• Axial Feed Length: 60 mm / 2.4"
• Weight (Net): 214 kg / 471 lbs
• Dimensions (ØA x B x C): 550 mm x 580 mm x 1005 mm (21.7 in x 22.8 in x 39.6 in)
• Max Operating Temperature: 55 °C / 131 °F
• Acoustic Radiation: 75 dB
• Overview: Heavy-duty portable beveler for pipe preparation in industrial settings; supports 30° to 60° bevel angles with formed or single-point tools; ideal for fabrication shops, construction sites, and pipeline maintenance
• Key Features:
  • Superior power and stability: Innovative bearing/crown and pinion with large shaft for unrivaled torque on heavy-wall pipes
  • Ratcheted I/D jaw locking: Ensures secure, vibration-free clamping without slippage; 6-point locking from wide jaws for chatter-free preps
  • Versatile tooling: Compatible with formed tools for J-grooves, compound bevels, counter boring, facing, weld removal, and single-point tools for custom angles; up to 4 heavy-duty hardened multi-position tool holders
  • Quick setup: Self-centering jaws and rapid tool change for efficient on-site operation; ratchet bevel feed control for effortless heavy wall preps
  • Durability: Hardened components resist wear in demanding environments; suitable for any steel and exotic alloys
  • Safety: Overload protection and ergonomic design reduce operator fatigue and hazards; requires filter lubricator and oil (use without voids warranty)
• Packaging: 1 Machine per Unit; Includes standard tooling kit, all locking jaws, service tools, hoses, drawings, instruction manual, and warranty certificate; Packed in protective custom-built box; Packing Dimensions (L x W x H): 1200 x 840 x 910 mm (47.2 in x 33.1 in x 35.8 in); Shipping Weight: 412 kg / 908 lbs
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe preparation tools (e.g., ASME B16.25 equivalents); patent pending
