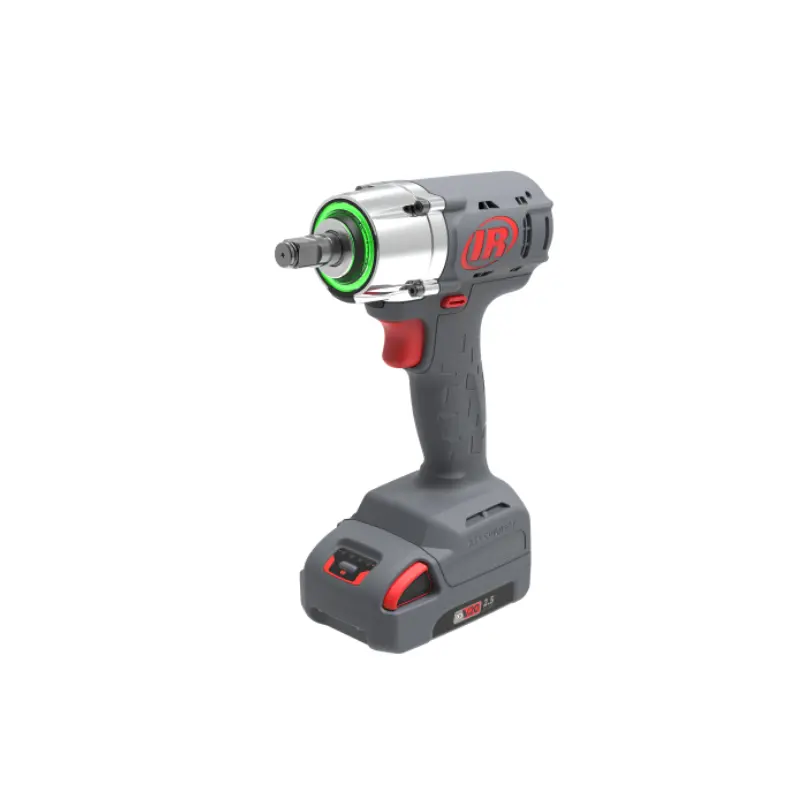

RTS225PS8 1/2" Sq Dr, Responsive Tightening System (RTS) Tool RTS, 225 N.m

Ingersoll Rand RTS225PS8 is a heavy-duty cordless mechanical pulse tool with Responsive Tightening System (RTS) Connect engineered for precision fastening in high-volume assembly lines, automotive production, and heavy maintenance operations requiring substantial torque. Providing accurate torque control from 75 to 225 N·m through a 1/2" square drive, this 20V tool incorporates a proprietary torque control algorithm with 40 torque levels and 7 flush levels for repeatable results, a brushless motor for efficient runtime, and wireless connectivity (Bluetooth/Wi-Fi/USB-C) for real-time data management via INSIGHTqcx™ app. It offers balanced ergonomics with reactionless performance to support extended shifts, reduce scrap rates, and ensure operator safety in demanding torque-sensitive applications.

Key Performance Specifications

• Torque Range: 75 - 225 N·m (663 - 1,980 in-lbs / 55 - 166 ft-lbs)
• Drive Size: 1/2" Square
• Accuracy: ±5% (with algorithm; Cmk >1.67 at ±5%)
• Speed: 1400 RPM (free speed); 2500 PPM (impacts per minute)
• Torque Levels: 40 programmable levels; 7 flush detection levels
• Psets: 8 configurations for varied applications

Physical and Environmental Specifications

• Voltage: 20V DC (lithium-ion battery platform)
• Weight: 6.0 lbs (2.72 kg) with battery
• Dimensions: 12.5" L x 3.0" H (ergonomic pistol-grip for balanced handling)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C); robust for industrial use
• Battery Life: IQV20 series compatibility; supports 80+ cycles per charge in high-torque tasks

Key Features

• RTS Torque Control Algorithm: Monitors energy pulses and provides real-time feedback for precise, repeatable torque delivery, preventing over- or under-tightening in dynamic joints
• Dual-Speed Non-Contact Trigger: High-speed rundown followed by controlled pulse phase for faster cycle times without compromising accuracy or reaction forces
• 360° LED Ring Light: Multi-color illumination for instant visibility of torque attainment, tool status, and battery charge, enhancing safety in low-light areas
• Wireless Connectivity: Bluetooth/Wi-Fi/USB-C integration with INSIGHTqcx™ app for programming, data logging, and error-proofing in connected workflows
• Reactionless Design: Minimizes torque reaction on operator wrists, reducing fatigue and vibration exposure during repetitive heavy bolting operations
• Applications: Ideal for automotive chassis, heavy machinery assembly, structural bolting, and industrial maintenance; excels in high-precision production lines with wireless monitoring
