RLT501 496 kN Capacity, 26 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder

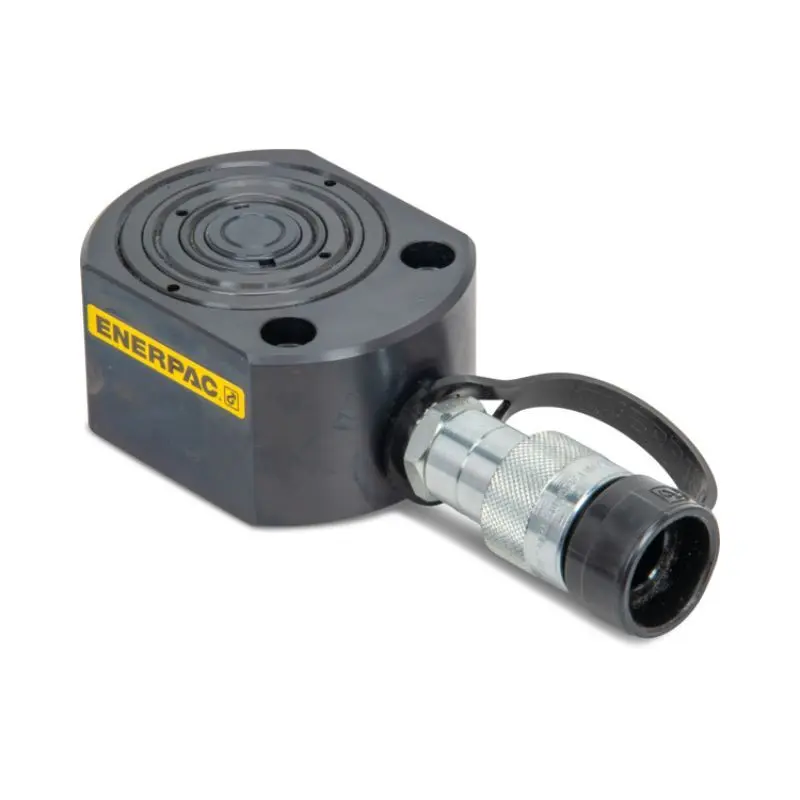

Enerpac RLT501 is a compact, low-height 2-stage telescopic hydraulic cylinder ideal for precise lifting and positioning in extremely confined spaces, such as machinery alignment or tool fastening. Delivering a maximum capacity of 55.8 tons (496 kN) over a 26 mm stroke, this single-acting, load-return model operates at up to 10,000 psi with nitrocarburized steel for superior corrosion and wear resistance, ensuring safe and efficient performance in industrial environments where traditional cylinders cannot fit.

• Product Overview
  • Name: Enerpac RLT501 Low Height Multi-stage Telescopic Hydraulic Cylinder
  • Type: Single-acting, 2-stage telescopic cylinder with load return
  • Primary Applications: Machinery positioning, tool fastening, and lifting in confined spaces
  • Force Output: 55.8 tons (496 kN) at maximum stroke
  • Stroke: 26 mm (1.02 in) total
  • Stages: 2 stages, 1st stage 16 mm (0.63 in) stroke; 2nd stage 10 mm (0.39 in) stroke
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 96 mm (3.78 in) minimum
• Technical Specifications
  • Capacity (Stage 1): 104.4 tons (929 kN)
  • Capacity (Stage 2): 55.8 tons (496 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Total Stroke: 26 mm (1.02 in)
  • Collapsed Height (A): 96 mm (3.78 in)
  • Extended Height (B): 122 mm (4.80 in)
  • Oil Capacity (Advance): 283 cm³ (17.29 in³)
  • Weight: 17.3 kg (38.1 lbs)
  • Outside Diameter (D1 x D2): 178 x 162 mm (7.01 x 6.38 in)
  • Plunger Diameter (F): 70 mm (2.76 in)
  • Bottom to Advance Port (H): 29 mm (1.14 in)
  • Body Material: High-alloy steel with nitrocarburized surface treatment
  • Side-Load Capacity: Up to 3% of maximum capacity
  • Series: RLT Series Low-Height Telescopic Cylinders
• Key Features
  • Low-profile design enables use in tight clearances where standard cylinders fail
  • Nitrocarburized treatment inside and out for corrosion protection and harsh-condition durability
  • Mounting bolt holes for secure and simple fixturing
  • Load return mechanism for rapid retraction and efficiency
  • High-alloy steel construction for maximum strength and safety
  • Integrated CR-400 coupler for compatibility with standard pumps
  • Complies with ASME B30.1 and EN1494 safety standards
