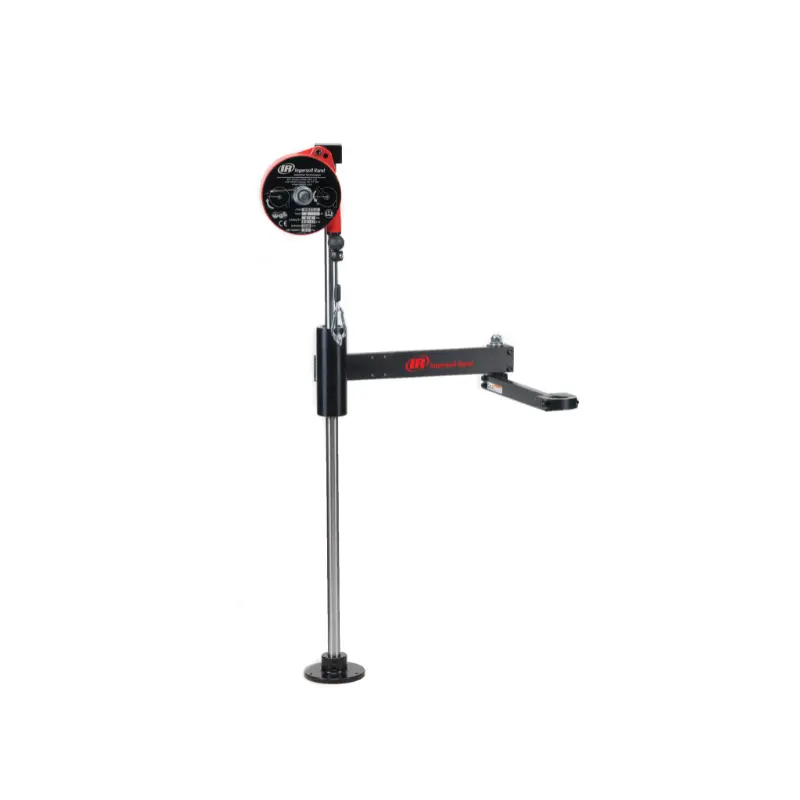

QTA010 Torque Arm, 10 N.m

Ingersoll Rand QTA010 is a lightweight torque arm assembly engineered for reaction torque absorption and ergonomic support in precision fastening applications, compatible with IQV series cordless tools up to 10 N·m. Featuring adjustable positioning with a 360° swivel joint and counterbalance spring for effortless height adjustment from 300 to 600 mm, this assembly minimizes operator fatigue, enhances tool stability, and prevents wrist strain during prolonged use in assembly lines, electronics manufacturing, and quality control. Constructed from durable aluminum with a flexible parallelogram linkage, it mounts via standard VHB adhesive or M6 bolts, supporting seamless integration with pistol-grip or inline tools while ensuring compliance in torque-sensitive workflows.

Key Performance Specifications

• Torque Capacity: Up to 10 N·m (88.5 in-lbs / 7.4 ft-lbs)
• Tool Compatibility: IQV series cordless tools (e.g., screwdrivers, nutrunners); max tool weight 2 kg (4.4 lbs)
• Adjustability: 360° swivel; vertical range 300 - 600 mm (11.8" - 23.6")
• Counterbalance: Spring-loaded for zero-gravity feel across full range
• Load Capacity: 0.5 - 2 kg (1.1 - 4.4 lbs) tool weight

Physical and Environmental Specifications

• Overall Length: 450 mm (17.7") extended
• Weight: 1.2 kg (2.65 lbs)
• Material: Anodized aluminum arms; steel spring; ABS end effector
• Mounting: Ceiling/wall bracket with VHB adhesive or M6 bolts (kit included)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C); suitable for industrial use
• Cable Management: Integrated routing channels for tool cables up to 10 mm diameter

Key Features

• 360° Swivel Joint: Enables full rotational freedom for multi-angle access, reducing repositioning time in confined workspaces
• Counterbalanced Parallelogram Design: Maintains constant tool height and orientation, eliminating gravitational pull for fatigue-free operation
• Quick-Release Tool Adapter: Universal clamp for IQV tools with one-hand attachment/detachment, supporting rapid changeovers
• Integrated Cable Routing: Built-in channels prevent cable tangling and damage, ensuring reliable power/signal transmission
• Robust Construction: Anodized aluminum resists corrosion and wear, with >50,000 cycle durability for high-volume production
• Applications: Optimized for low-torque cordless tool support in electronics assembly, automotive components, and medical device manufacturing; excels in ergonomic, overhead-reach workflows
