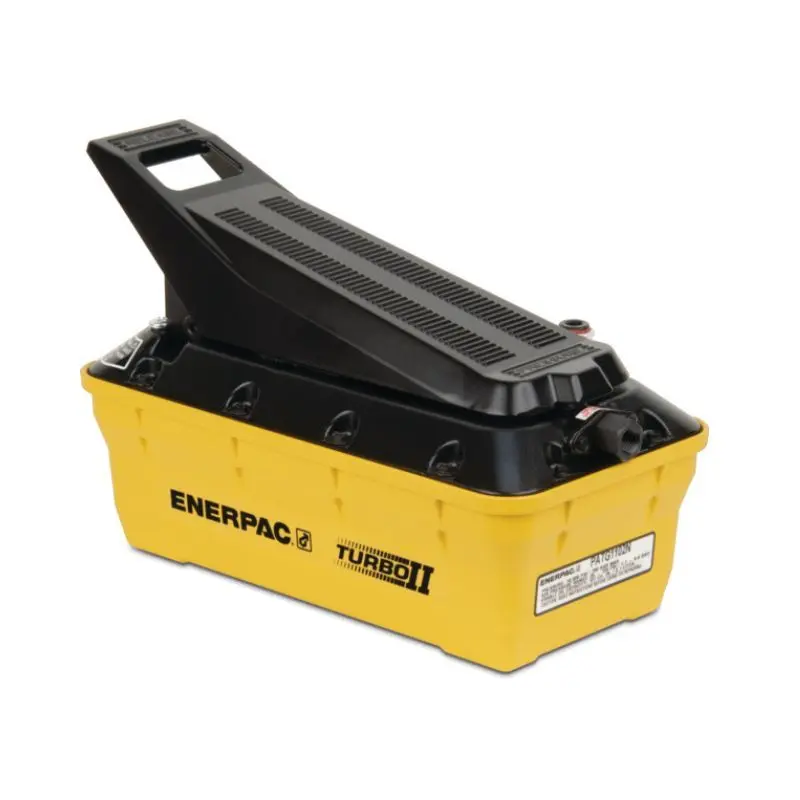

PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 2081 cm3 Usable Oil, For use with Single-Acting Cylinders

Enerpac PATG1102N Turbo II Air Hydraulic Pump Hand/Foot Operated 3/3 Treadle Valve 2081 cm3 Usable Oil For use with Single-Acting Cylinders is a high-efficiency, air-powered hydraulic pump designed for reliable, hands-free operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring Turbo II two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this pump includes a 3-way 3-position treadle valve operable by hand or foot for advance/hold/retract functions, 2081 cm³ (127 in³) usable oil reservoir, and operates on compressed air (40-125 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times, reduced air consumption, and consistent power delivery without electrical hazards.

• Model Number: PATG1102N
• Product Type: Turbo II Air Hydraulic Pump (Two-Speed, 3/3 Treadle Valve)
• Color: Silver/Gray
• Material: Reinforced heavy-duty lightweight reservoir with cast aluminum air motor and hardened components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 2081 cm³ (127 in³) Usable
• Valve Type: 3-Way, 3-Position Treadle (Hand/Foot Operated: Advance/Hold/Retract)
• Flow Rate: 10 in³/min (0.16 L/min) at Rated Pressure; 60 in³/min (1.0 L/min) No Load
• Air Consumption: 12 SCFM
• Air Pressure Range: 40-125 psi (2.8-8.6 bar)
• Sound Level: 76 dBA
• Weight (Net): 8.2 kg / 18 lbs
• Dimensions: Length: 313 mm (12.33"), Width: 165 mm (6.49"), Height: 210 mm (8.27")
• Overview: High-flow air hydraulic pump with two-speed operation for efficient single-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles, low noise, and Turbo II reliability for maintenance tasks
• Key Features:
  • Hand/foot operated treadle valve for hands-free, ergonomic control in demanding environments
  • Air Saver Piston reduces air consumption and operating costs while enabling start-up at low pressures
  • Internal pressure relief valve provides overload protection, with external adjustable relief for customization
  • Reinforced reservoir for tough applications, with return-to-tank port for remote valve setups
  • Compatible with Enerpac RC-series single-acting cylinders and tools for versatile industrial applications
