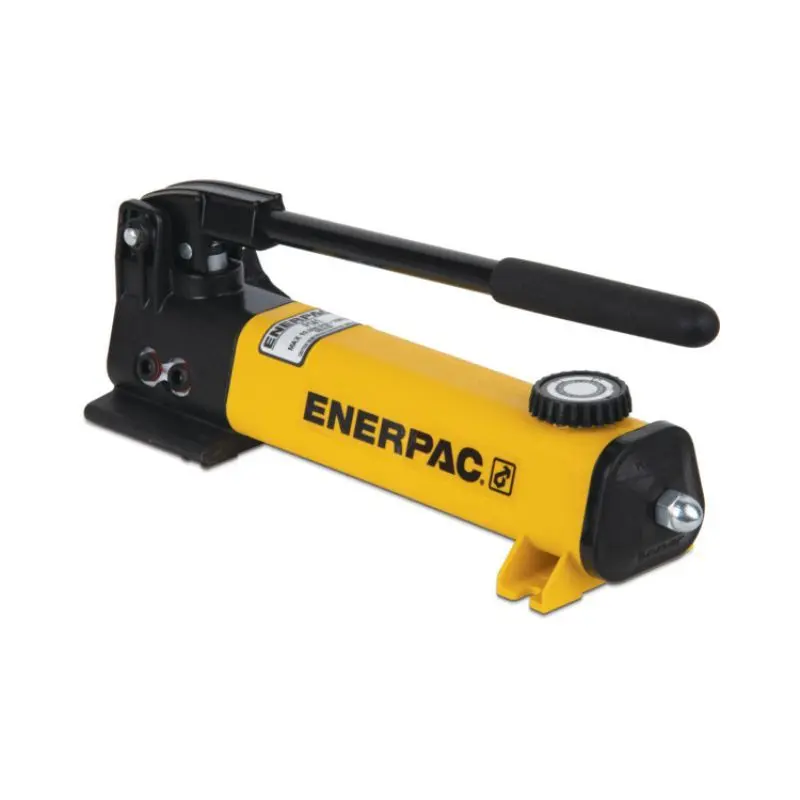

P802 Two Speed, Lightweight Hydraulic Hand Pump, 2540 cm3 Usable Oil

Enerpac P802 Two Speed Lightweight Hydraulic Hand Pump 2540 cm3 Usable Oil is a compact, manually operated hydraulic pump designed for precise control in industrial maintenance and assembly tasks requiring double-acting cylinder operation. Featuring two-stage speed technology for rapid low-pressure advance (up to 400 psi) transitioning to high-pressure efficiency up to 10,000 psi, this lightweight tool includes a 4-way 3-position manual valve for advance/hold/return functions, 2540 cm³ (155 in³) usable oil reservoir in a durable glass-filled nylon construction, and ergonomic handle for fatigue-free operation, ensuring reliable performance without external power sources.

• Model Number: P802
• Product Type: Lightweight Hydraulic Hand Pump (Two-Speed, 4-Way Valve)
• Color: Silver/Gray
• Material: Glass-Filled Nylon Reservoir with Nylon Encapsulated Aluminum Pump Base and Hardened Steel Components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure; Two-Stage (1st Stage: 400 psi / 27 bar, 2nd Stage: 10,000 psi / 700 bar)
• Oil Capacity: 2540 cm³ (155 in³) Usable
• Valve Type: 4-Way, 3-Position Manual (Advance/Hold/Return) for Double-Acting Cylinders
• Flow Rate: 2.40 in³/stroke (39 cm³/stroke) 1st Stage; 0.15 in³/stroke (2.46 cm³/stroke) 2nd Stage; 25 mm (1") Stroke Length
• Weight (Net): 7.1 kg / 15.7 lbs
• Dimensions: Length: 552 mm (21.75"), Height: 337 mm (13.3"), Width: 83 mm (3.27")
• Overview: Compact two-speed hand pump for efficient double-acting applications; ideal for field or workshop use with lightweight design, high-pressure capability, and simple manual controls for precise lifting and positioning
• Key Features:
  • Two-stage operation enables quick initial advance at low pressure for faster setup, switching to high force for controlled operation up to 10,000 psi
  • Durable glass-filled nylon reservoir resists corrosion and damage, with sight glass for easy oil level monitoring
  • Ergonomic handle and 1" stroke length reduce operator fatigue during extended use
  • Internal pressure relief valve provides overload protection, factory-set for safety
  • Compatible with Enerpac RC-series double-acting cylinders and standard hydraulic hoses for versatile industrial tasks
