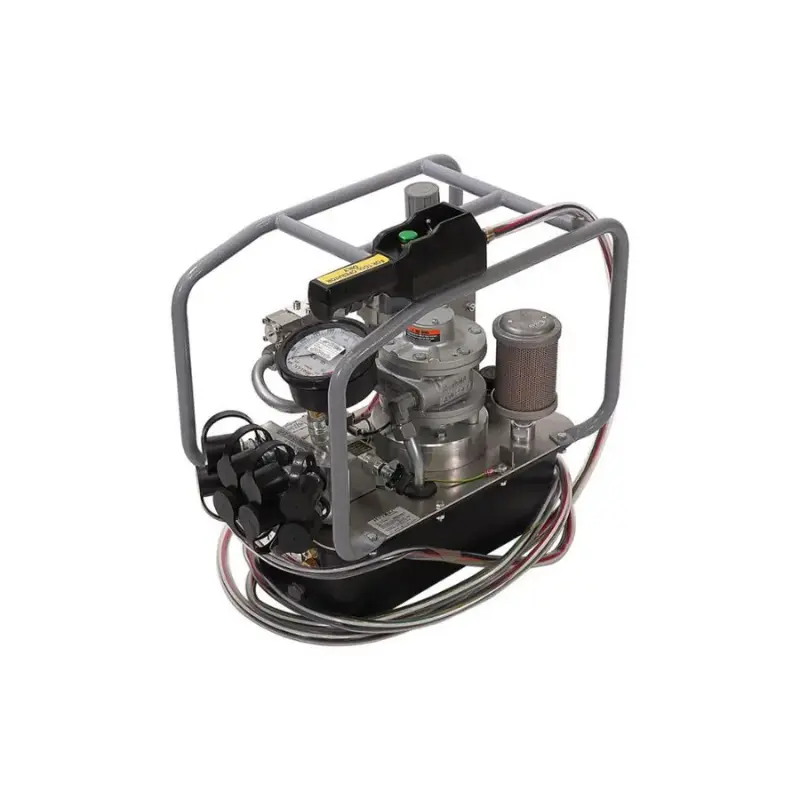

HY-AIR-2-4S, 4 Stage Pneumatic Pump, 4 Ports, c/w 10k PSI Gauge

HYTORC HY-AIR-2-4S is a 4-stage twin-line pneumatic hydraulic pump from the HY-AIR series, optimized for safe, efficient bolting in hazardous environments without electricity. Supporting up to 4 tools simultaneously with rapid pressure buildup to 10,000 PSI and high flow rates, it includes a built-in FRL (filter-regulator-lubricator) for clean operation and an optional oil cooler to prevent overheating. Portable with protective caging and remote control, it's ideal for construction, oil & gas, and maintenance, ensuring productivity in multi-tool setups.

Key Performance Specifications

• Working Pressure: 0–10,000 PSI (700 bar)
• Maximum Oil Flow Rate: 770 cu. in./min (13 L/min)
• Stages: 4 stages
• Air Consumption: 3,800 cu. in./sec (62 L/sec)
• Gauge: 0–10 k PSI (±1% accuracy, included)

Physical and Environmental Specifications

• Reservoir Capacity: 1.35 gal (5.1 L); optional 2 gal (7.6 L) tank
• Weight: 46.3 lbs (21 kg, without oil)
• Dimensions: Compact with wheels for mobility (exact not specified)
• Ports: 4 quick-connect ports
• Operating Temperature: Suitable for industrial use (no specific range listed)

Key Features

• Twin-Line Design: Dual cylinders for high flow and rapid pressure delivery
• FRL Unit: Integrated filter-regulator-lubricator for contamination-free air
• Protective Caging: Full enclosure for safety
• Remote Control: 15 ft cord with deadman switch
• Applications: Bolting tools, torque wrenches in hazardous areas
• Standards Compliance: Burst-tested to 40,000 PSI; RoHS compliant components
