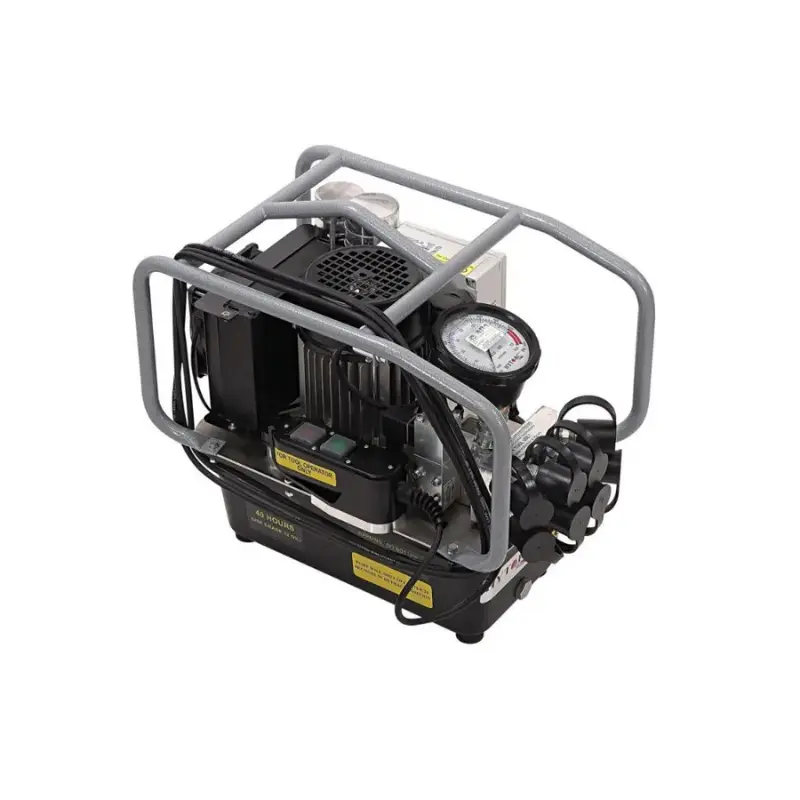

HY-230-2-4S, 4 Stage Electric Pump, 4 Ports, c/w 10k PSI Gauge

HYTORC HY-230-2-4S is a 4-stage electric hydraulic pump from the HY-TWIN series, optimized for high-volume bolting in industrial environments like construction and maintenance. Supporting up to 4 tools simultaneously with rapid pressure buildup to 10,000 PSI and a maximum flow rate of 549 cu.in./min, it features quiet operation (~80 dB), an oil cooler to prevent overheating, and protective caging for safety. With a 230V power supply and deadman remote control, it's portable and efficient for multi-tool workflows.

Key Performance Specifications

• Voltage/Power: 230V / 4.0 Amp
• Working Pressure: 0–10,000 PSI (700 bar)
• Stages: 4
• Maximum Oil Flow Rate: 549 cu.in./min (9.0 L/min)
• Gauge: 0–10k PSI (±1% accuracy, digital)
• Noise Level: ~80 dB

Physical and Environmental Specifications

• Reservoir Capacity: 1.35 gal (5.1 L); optional 2 gal (7.6 L)
• Weight: 60 lbs (27 kg, without oil)
• Dimensions: Compact with wheels for mobility (exact not specified)
• Ports: 4 quick-connect ports
• Operating Temperature: Suitable for industrial use (no specific range listed)

Key Features

• Twin-Motor Design: Dual cylinders for high flow and rapid pressure delivery
• Deadman Switch: Remote or foot pedal control for safety
• Oil Cooler: Prevents overheating during extended use
• Protective Caging: Full enclosure for harsh environments
• Applications: Bolting tools, torque wrenches in construction, petrochemical, and power generation
• Standards Compliance: Burst-tested to 40,000 PSI; RoHS compliant components
