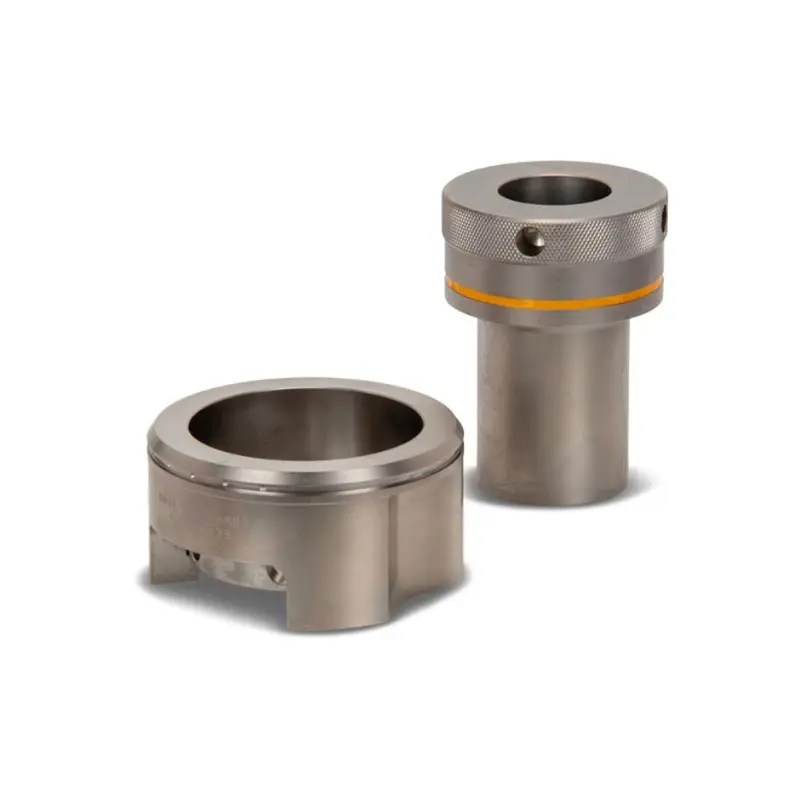

HM05BPMNRS03335, HM05 Tensioner Adaptor and Bridge Kit, M33 x 3,5 Thread Size

Enerpac HM05BPMNRS03335 is a specialized adapter and bridge kit for the HM05LC HydraMax hydraulic topside bolt tensioner load cell, tailored for M33 x 3.5 thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 500 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM05BPMNRS03335 (HM05 Tensioner Adapter and Bridge Kit)
• Thread Size: M33 x 3.5
• Maximum Load Capacity: 500 kN
• Load Cell Reference: HM05LC
• Compatibility: HM05LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M27–M33 equivalent
• Weight: 2.5 kg (5.5 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge, in inches): Overall Height (A): 5.5; Body Diameter (B): 4.9; Piston Diameter (C): 0.9; Overall Length (D): 3.7; Bridge Width (E): 9.8; Reaction Arm Length (F): 1.4; Stud Protrusion Required (N): 2.7; Nearest Obstruction (X min.): Varies by config
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC, ASME B30.1, EN-ISO 4413:2010, EN-ISO 12100:2010
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
