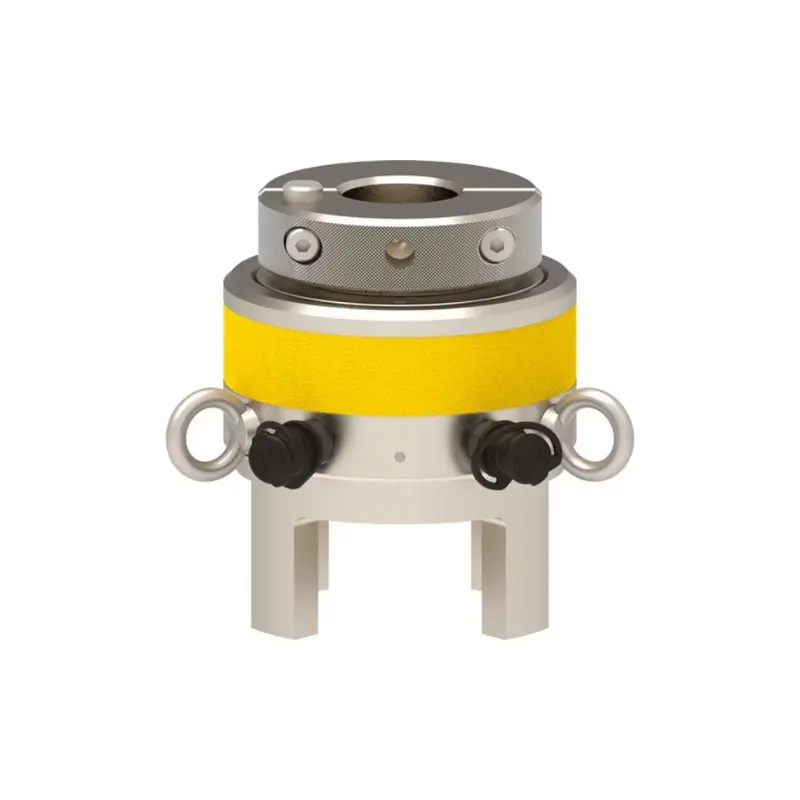

EAJ7LC, Aquajack Subsea Bolt Tensioner, 2 3/4" - 3" Maximum Thread Range

Bolt Diameter Range: 2 3/4" – 3" (M68 – M76 mm)
Maximum Operating Pressure: 21,750 psi (1,500 bar)
Cylinder Effective Area: 19.17 in²
Maximum Load Capacity: 208.6 tons (1,855 kN)
Stroke: 1.18 in
Weight: 41.89 lbs (19 kg)
Key Dimensions (in inches): A = 9.06, B = 7.01, C = 2.95, D = 7.56, E = 15.75, F = 3.74, G = 6.06, H = 9.25
Key Features: Compact design for subsea use; long piston stroke; misalignment compensation; quick hose connection; visible stroke indication; no-spill overstroke protection; Split Nut for rapid application/removal on long or damaged bolts

This combination does not exist.

Brand: Enerpac
